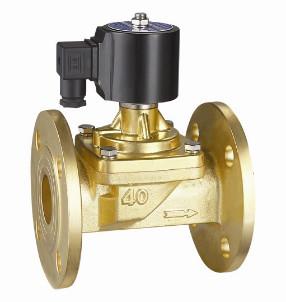

Flange Zero Pressure Differential Steam Solenoid Valve NC DN15～50mm RSPS Series

  • 1
  • 2

Brand Name : ROUND STAR

Model Number : RSPS

Certification : ISO CE ROHS

Place of Origin : CHINA

MOQ : 5 pieces

Price : USD

Payment Terms : T/T, Western Union

Supply Ability : ask for advice

Delivery Time : 3~14 working days

Packaging Details : carton pallet

material : brass SS304

interface type : flange

interface : 2-way

operate : semi direct acting

working type : normally closed

medium : steam high temperature liquid

Contact Now

RSPS series flange zero pressure differential ( NC ) steam solenoid valve DN15～50mm

working medium:steam high temperature liquid

medium temperature:0 ～ 180 ℃

working pressure:0 ～ 16 (details see specification table)

working type:semi direct acting(NC)

valve body material:brass SS304

sealing material:PTFE

interface:flange

Working voltage:AC220～240V AC110V 50/60Hz DC24/12V IP65 H degree

AC power: DN8～20 23VA DN25 26VA DN35～50 32VA DC power: DN8～20 28W DN25～50 30W

Flange Zero Pressure Differential Steam Solenoid Valve NC DN15～50mm RSPS Series

RSPS-series flange solenoid valve dimension table

model PN=1.6MPa GB/T9113.1-2000 flange connection dimension (mm)
DN L D H K d C f n-φ
RSPS—15JFN 15 106 95 164 65 46 14 2 4-φ14
RSPS—20JFN 20 106 105 166 75 56 16 2 4-φ14
RSPS—25JFN 25 135 115 185 85 65 16 3 4-φ14
RSPS—32JFN 32 140 140 220 100 76 18 3 4-φ18
RSPS—40JFN 40 145 150 230 110 84 18 3 4-φ18
RSPS—50JFN 50 182 165 250 125 99 20 3 4-φ18
RSPS—20FN 20 107 105 165 75 56 16 2 4-φ14
RSPS—25FN 25 103 115 195 85 65 16 3 4-φ14
RSPS—32FN 32 135 140 222 100 76 18 3 4-φ18
RSPS—40FN 40

154

 150

235

 110 84 18 3 4-φ18
RSPS—50FN 50 190 165 250 125 99 20 3 4-φ18

RSPS-series flange solenoid valve specification table

model

orifice

(mm)

Cv

 working pressure (bar)

max

medium

temp.

℃

 coil

normal order code

min

pressure

Max pressure

coil

insulation

degree

 power

AC220V

plastic seal

Flange connection
steam

high temperature liquid

viscosity≤20cst

VA

W

AC

220

V

DC

24

V
AC DC AC DC brass SS304

RSPS-15JFN

 18 7.2 0 10 6 10 6 180 H 23 28 RSPS-15JFN-AC220V

RSPS-20JFN

 18 7.2 0 10 6 10 6 180 H 23 28 RSPS-20JFN-AC220V

RSPS-25JFN

 25 12 0 10 6 10 6 180 H 50 35 RSPS-25JFN-AC220V

RSPS-32JFN

 32 24 0 10 5 10 5 180 H 50 35 RSPS-32JFN-AC220V

RSPS-40JFN

 40 30 0 10 5 10 5 180 H 50 35 RSPS-40JFN-AC220V

RSPS-50JFN

 50 48 0 10 5 10 5 180 H 50 35 RSPS-50JFN-AC220V

RSPS-20FN

 20 7.6 0 10 6 10 6 180 H 23 28 RSPS-20FN-AC220V

RSPS-25FN

 25 12 0 10 6 10 6 180 H 50 35 RSPS-25FN-AC220V

RSPS-32FN

 32 24 0 10 5 10 5 180 H 50 35 RSPS-32FN-AC220V

RSPS-40FN

 40 30 0 10 5 10 5 180 H 50 35 RSPS-40FN-AC220V

RSPS-50FN

 50 48 0 10 5 10 5 180 H 50 35 RSPS-50FN-AC220V
